Rack 0 - 55 VA
		20 VA	22 VA	26 VA	30 VA	32 VA	38 VA	45 VA	50 VA	52 VA	55 VA

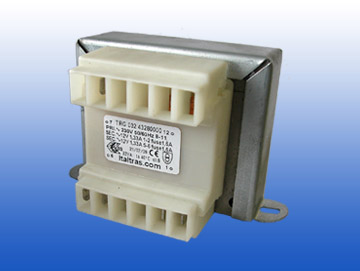

						32 VA Faston

32VA

Dimension

Datasheet

Weight 940g

Secondary 1x
Code	Primary V	Secondary V		Marks
	Pin 1-6	Pin 8-11
42145501	230V	6
42145601		9
42145701		12
42145801		15
42145901		18
42146001		24
Secondary 2x
Code	Primary V	Secondary V		Marks
	Pin 1-6	Pin 7-8	Pin 11-12
42146501	230V	6	6
42147001		9	9
42147501		12	12
42148001		15	15
42148501		18	18
42149001		21	21
