Trasformatori a giorno da circuito stampato o telaio - Open transformers for rack or PCB

Mono-phase		Three-phase		Encapsulated		Toroidal		For electronic		Power supplies
Rack 55 - 150 VA
	63 VA	72 VA	81 VA	85 VA	90 VA	94 VA	102 VA	108 VA	120 VA	135 VA	147 VA

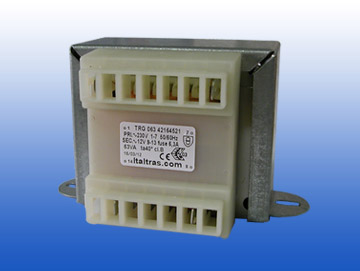

		72VA Faston

72VA

Datasheet

Weight 1730g

Secondary 1x
Code	Primary V	Secondary V		Marks
	Pin 1-6	Pin 8-11
42165501	230V	6
42165511		9
42165521		12
42165531		15
42165541		18
42165551		24
Secondary 2x
Code	Primary V	Secondary V		Marks
	Pin 1-6	Pin 7-8	Pin 11-12
42166501	230V	6	6
42167001		9	9
42167501		12	12
42168001		15	15
42168501		18	18
42169001		21	21
