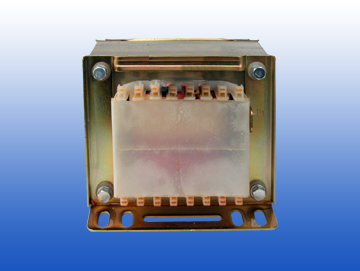

Trasformatori a giorno da circuito stampato o telaio - Open transformers for rack or PCB

Mono-phase		Three-phase		Encapsulated		Toroidal		For electronic		Power supplies
Rack 150 -500 VA
	160 VA	185 VA	210 VA	240 VA	265 VA	290 VA	315 VA	340 VA	370 VA	390 VA	420 VA

185VA

Datasheet

Weight 3630g

Secondary 1x
Code	Primary V	Secondary V		Marks
	Pin 1-8	Pin 10-15
42180000	230V	6
42180100		9
42180200		12
42180300		15
42180400		18
42180500		24
Secondary 2x
Code	Primary V	Secondary V		Marks
	Pin 1-8	Pin 9-10	Pin 15-16
42181000	230V	6	6
42181500		9	9
42182000		12	12
42182500		15	15
42183000		18	18
42183500		21	21
