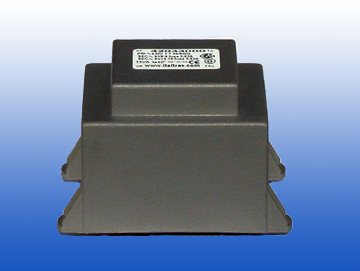

20VA
Dimensions
 Technical data
Datasheet
Weight  752g
Output 1x
Code Primary V Secondary V Marks
Pin 1-7 Pin 9-13
42040200 230V 6V
42040400 9V
42040600 12V
42040800 15V
42041000 18V
42041200 24V
42041400 115V 6V
42041600 9V
42041800 12V
42042000 15V
42042200 18V
42042400 24V
Output 2x
Code Primary V Secondary V Marks
Pin 1-7 Pin 8-9 / 13-14
42042600 230V 2x6V
42042800 2x9V
42043000 2x12V
42043200 2x15V
42043400 2x18V
42043800 115V 2x6V
42044000 2x9V
42044200 2x12V
42044400 2x15V
42044600 2x18V
